Model : UltiMate series

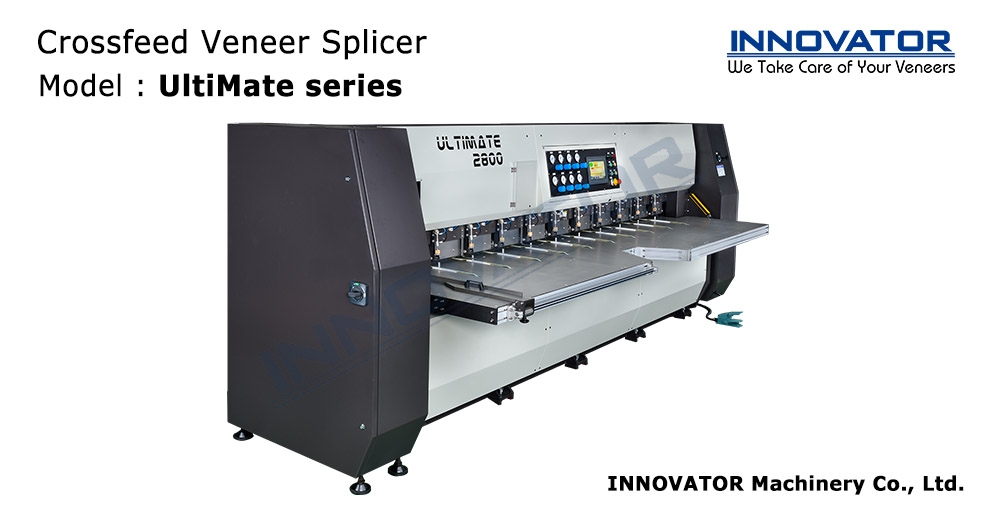

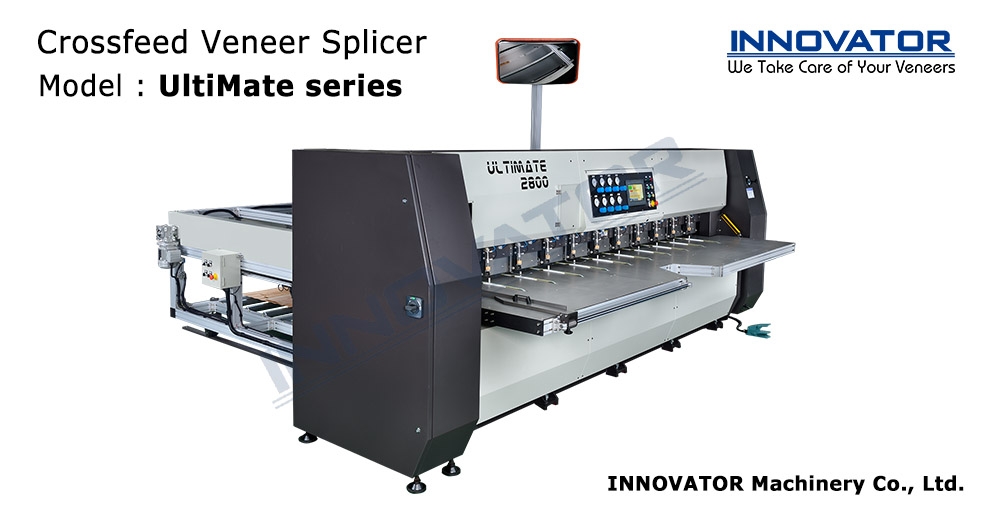

Crossfeed Veneer Splicer
Product Introduction
The UltiMate crossfeed splicing machine is designed for glue-spliced joint for long and panel-sized veneer faces. Veneer bundles can be well-cut straight with double knife guillotines and then pre-glued on the edges as preparation. The pre-glued veneer strips are fed into the machine manually with feeding stoppers for fast and easy operation. The efficient production output of the crossfeed splicing machines is a great deal faster than the longitudinal splicing machines, especially beneficial for long veneers. We also supply Automatic Stacking System with Trimming as optional equipment for a big step towards the automated production. Together with our Double Knife Veneer Guillotine, CutMate D series, Double Sided Veneer Glue Applicator, GlueMate 700, and Veneer Fanning Machine, FanningMate, a full set of veneer splicing line is completed.

Features

  • infeed guides for veneer jointing alignment
  • air cleaning system for photoelectric sensors
  • safety guard of light curtain with European safety standards
  • fix-length (cut-to-size) and endless (fix-jointed) splicing modes offered
  • pre-feeding stopper system to avoid mismatching in the beginning of feeding stage
  • hydraulic driven clipper for the pre-selected width of veneer faces(UltiMate series
  • “clear-and-easy” operation control panel with user-friendly PLC based interface touch screen
  • veneers with the thinness as low as 0.2 mm spliced (certain species of veneers) - UltiMate series
  • independent cylinders for crossbeam pressure for thin veneers splicing even possible with extremely thin veneers(UltiMate series
  • remote monitoring maintenance system for faster access from the manufacturer in case of machine breakdown - In case of machine breakdown, our service personnel can check customers’ PLC program via the internet so as to solve the problem in time
Recommended Option(s)
  1. edge reinforcing device (Model:ERD series) - This device tapes veneer sheets up with paper and simultaneously cut off the waste as the final step. Operators can even adjust the width of trimming heads to fit the size of veneer faces as their requirement. The device effectively keeps the edges of veneer faces from splitting with tapes while being transported.
  2. automatic stacker for stacking veneer sheets - The jointed veneer faces will be transported onto this automatic stacker. With specially designed stacker, jointed veneer faces are then placed well on the top of scissor lifting table for next movement.
  3. scissor lifting table - With the hydraulic scissor lifting table at the end of the automatic stacker for stacking jointed veneers, veneer faces are then settle well for stacking efficiency enhancement.

ModelUltiMate 3400UltiMate 2800UltiMate 2100UltiMate 1500
Veneer Strip Length 450 ~ 3400 mm 450 ~ 2800 mm 450 ~ 2100 mm 450 ~ 1500 mm
Veneer Strip Thickness 0.25 ~ 1.5 mm (0.35 ~ 2.5 mm for UltiMate S series) 0.25 ~ 1.5 mm (0.35 ~ 2.5 mm for UltiMate S series) 0.25 ~ 1.5 mm (0.35 ~ 2.5 mm for UltiMate S series) 0.25 ~ 1.5 mm (0.35 ~ 2.5 mm for UltiMate S series)
Veneer Strip Width min. 75 mm (85 mm for 1st strip) min. 75 mm (85 mm for 1st strip) min. 75 mm (85 mm for 1st strip) min. 75 mm (85 mm for 1st strip)
Production Speed up to 15 ~ 20 cycles/min. up to 15 ~ 20 cycles/min. up to 15 ~ 20 cycles/min. up to 15 ~ 20 cycles/min.
Electric Power approx. 28 kw approx. 23 kw approx. 19 kw approx. 16 kw
Compressed Air 5 bar 5 bar 5 bar 5 bar
Dimensions (L x W x H) 4800 x 1800 x 1800 mm 4200 x 1800 x 1800 mm 3500 x 1800 x 1800 mm 2950 x 1500 x 1800 mm
Net Weight approx. 6200 kg approx. 5300 kg approx. 4400 kg approx. 3500 kg
Color RAL 7043 / RAL 9016 RAL 7043 / RAL 9016 RAL 7043 / RAL 9016 RAL 7043 / RAL 9016
* Technical data is not binding and can be modified without prior notice.
