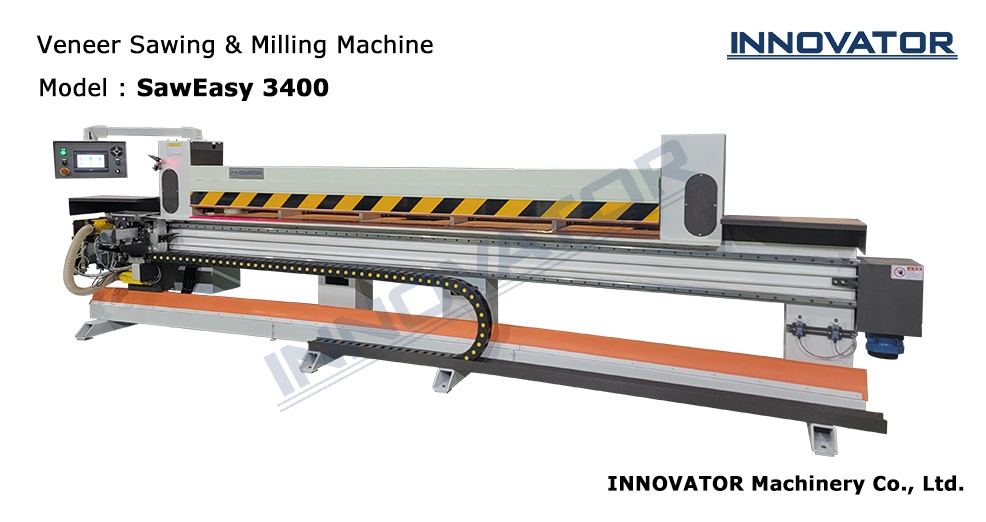

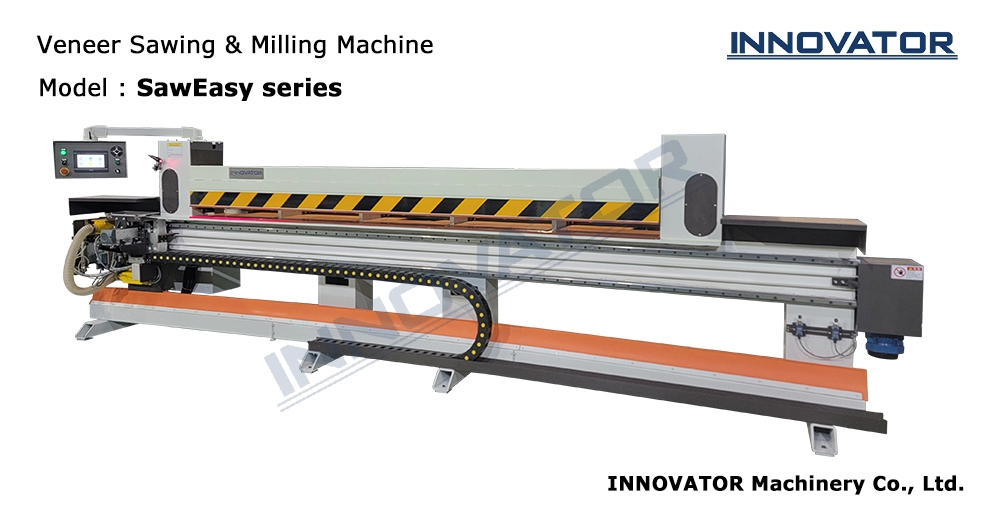

Veneer Sawing & Milling Machine (SawEasy 3400)
.jpg "Veneer Sawing & Milling Machine (SawEasy 3400)")
Product Introduction
Please click here if this video can not be played.
The Veneer Sawing & Milling Machine (SawEasy 3400) is designed for the sawing and milling of thick veneer to the desired width. After the veneer bundle is placed horizontally, its edges are sawed and milled using a stable pressure beam, a precise positioning fence and high-speed cutters, ensuring clean and squared edges for perfect splicing effects.
Features
- optimized laser guide for quick precise positioning on the veneer cutting line
- sawing and milling system with the protective guard for a safe working environment
- user-friendly touch screen control panel with processing modes for either sawing or sawing and milling
- adjustable processing speed according to veneer quality for precise cutting quality and operational efficiency
- stable pressure beam with pneumatic lifting design on both sides enabling wavy veneers to be clamped securely
- fine-level milling, executed during retraction to efficiently utilize return stroke, enabled contributing to clean splicing edges for cutting precision
- circular saw structure driven by a high-speed spindle motor and guided by a linear rail for precise cutting operations on veneers of any type or quality
- equipped with a simplified HMI control system as standard enabling users to input the finished dimensions for automatic and accurate fence positioning
- rear positioned fence driven by a servo motor with a high-precision linear sliding structure on both sides for accurate parallel alignment through simple operation via the HMI
| Model | SawEasy 3400 |
|---|---|
| Veneer Bundle Length | max. 3400 mm |
| Veneer Width | 55 ~ 680 mm |
| Veneer Bundle Thickness | max. 50 mm |
| Sawing & Milling Speed | max. 15 m/min. |
| Saw Power | 3.75 kw (12000 rpm) |
| Saw Size | D255 x L3.2 x d25.4 x 80T |
| Mill Power | 1.5 kw (12000 rpm) |
| Mill Size | D125 x L60 x d35 x 6T |
| Electric Power | 6.5 kw |
| Compressed Air | 5 bar |
| Dimensions (L x W x H) | 6000 x 1900 x 1800 mm |
| Net Weight | approx. 2400 kg |
| Color | RAL 8019 / RAL 9003 |
