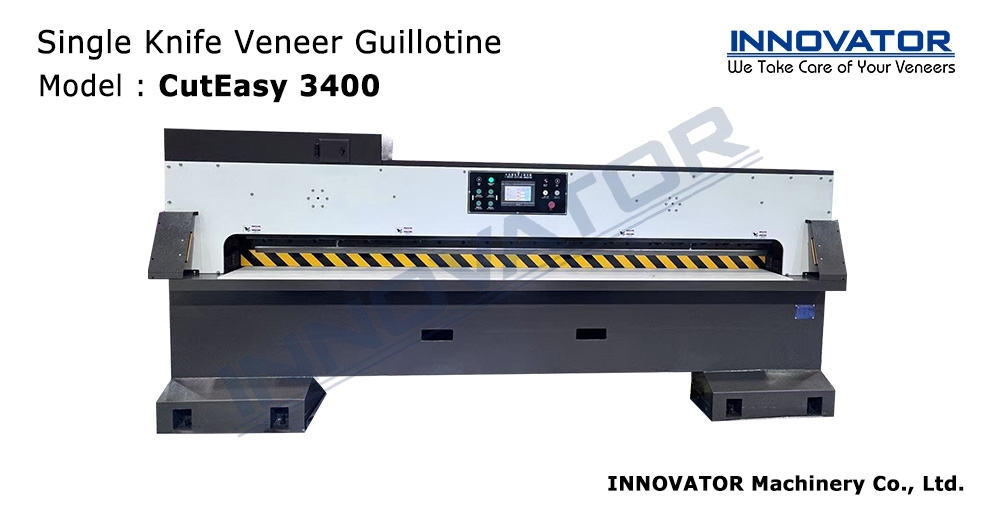

Single Knife Veneer Guillotine (CutEasy)
.jpg "單刀剪切機")
Product Introduction
CutEasy 3400 offers the accurate linear cutting. The cutting accuracy is obtained by the fact that the whole veneer bundle is fully under pressure while cutting so that buckles in the veneers will be straightened out, particularly useful when cutting waving veneer bundles. CutEasy 3400 is also constructed with a view to the highest security of the operator without causing inconvenience to the working. Coupled with INNOVATOR’s Double Sided Veneer Glue Applicator (GlueMate 700) & Crossfeed Veneer Splicer (UltiMate series), the perfect gluing and jointing result is accomplished with high production efficiency.
Features
- cutting indicator
- 150 mm wide pack beam
- safety light barrier of knife and pack beam in front
- adjustable hydraulic pressure with knife and pack beam for all kinds of veneers
- two-hand operation of the knife and pack beam：no movement of the pack beam against the veneer pack made immediately when one push button is released
Recommended Option(s)
- angle gauge for veneer bevel cutting, widely used in parquetry
| Model | CutEasy 3400 |
|---|---|
| Cutting Length | 3400 mm |
| Daylight Opening | 60 mm |
| Electric Power | approx. 5 kw |
| Cutting Width | 30 ~ 650 mm |
| Pack Beam Width | 150 mm |
| Dimensions (L x W x H) | 4200 x 1640 x 1700 mm |
| Net Weight | approx. 3200 kg |
| Color | RAL 8008 / RAL 9003 |
